Indoflex

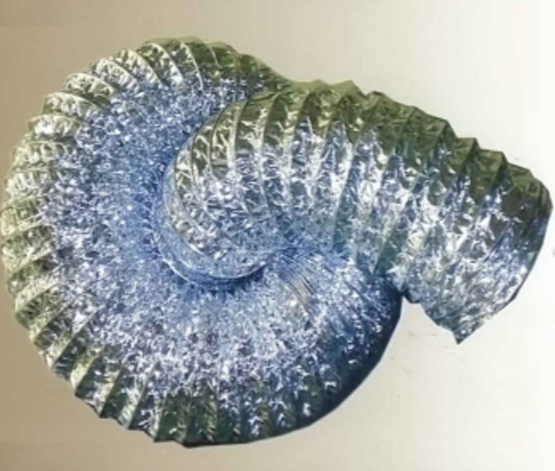

TYPE AF-1 NON INSULATED

Fully flexible, lightweight metallized flexible duct suitable for low/medium pressure air conditioning & ventilation system, easy to install over either oval or round connectors. The tough standard one layer metallized construction, encapsulated a high tensile steel wire helix.

    TECHNICAL DATA
  • Diameter Range: 4" - 14"
  • Temperature Range: -20°C.+ -80°C
  • Air Velocity: Max. 20 m/Sec.
  • Standard Length: 10 Metres
  • Wire Spacing: 37 mm.

    • For download the pdf 1, pdf 2.

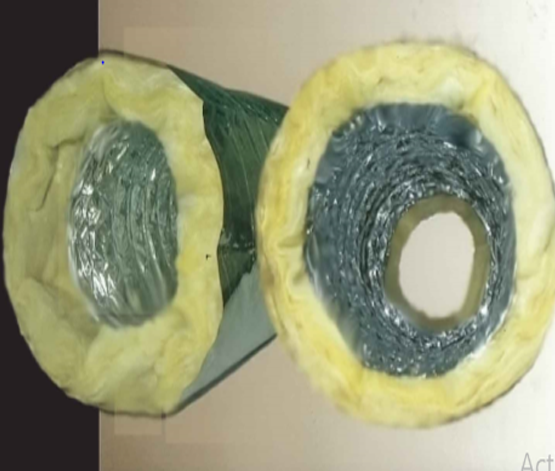

TYPE AF-1 INSULATED
16 kg/m 3 - 32 kg/m 3 (Thickness 25mm)

Thermal insulated duct using standard IF-1 type product as inner core, fiberglass insulation & fiberglass grid reinforced metallized foil.

    TECHNICAL DATA
  • Diameter Range: 4" - 16"
  • Temperature Range: -20°C.+ -80°C
  • Air Velocity: Max. 25 m/Sec.
  • Standard Length: 10 Metres.
  • Wire Spacing : 37 mm

    • For download the pdf 1, pdf 2.
