Modul Flex

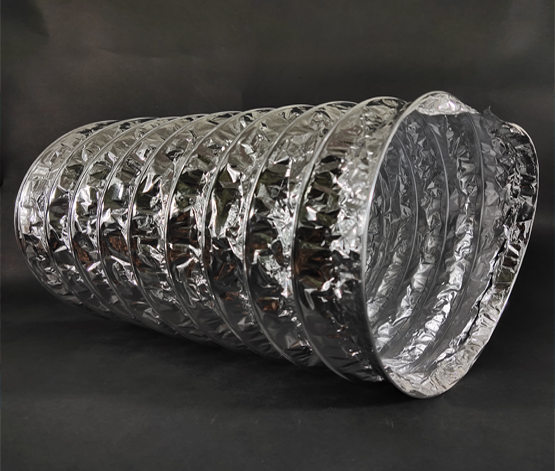

TYPE 10 A-1

Fully Feasible. Tightweight aluminium laminated duct suitable for low Medium pressure air conditioning and ventilation systems. Easy to instal over either oval or round connections. At high temperature, or in the case of fire, non toxic or gas emission The tough standard one layer aluminium laminated construction encapsulates a high tense steel wire helix.

    TECHNICAL DATA
  • Diameter Range: 4" - 12"
  • Temperature Range: -30°C.+120°C
  • Air Velocity: Max. 22 m/Sec.
  • Working Pressure: 200 mm W.G. (Max)
  • Standard Length: 10 Metres
  • Wire Spacing: 37 mm.

    • For download the pdf here

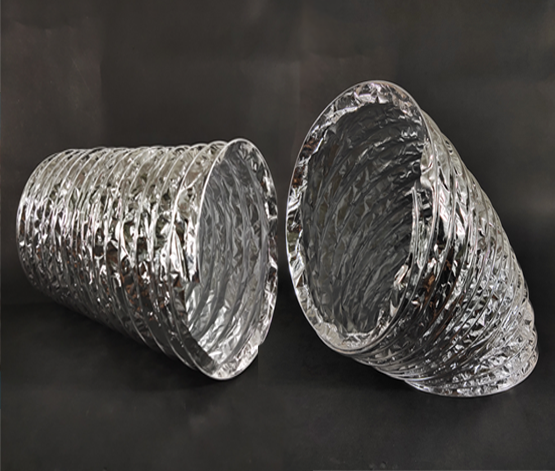

TYPE 10 A-2

Fully flexible, lightweight aluminium laminated duct suitable for low.medium pressure air conditioning and ventilation systems. Easy to install aver either oval or round connections At high temperature, or in the case of fire, no toxic or gas emission. The tough standard two Layer aluminium construction encapsulates high tonsile steel wire helix.

    TECHNICAL DATA
  • Diameter Range: 4" - 20"
  • Temperature Range: -30°C.+120°C
  • Air Velocity: Max. 28 m/Sec.
  • Working Pressure: 250 mm W.G. (Max)
  • Standard Length: 10 Metres

    • For download the pdf here

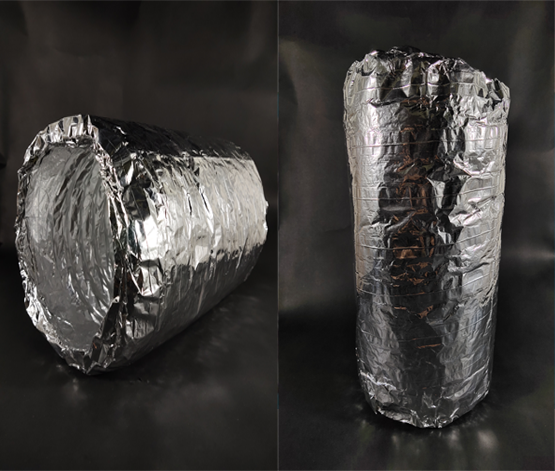

TYPE T 10A INSULATED 16 Kg & 24 Kg

Thermal insulated duct, using standard 10 A-2 type product as inner core, fiberglass insulation and fiberglass grid reinforced aluminium foil. At high temperature or in case of fire. this duct will not generate any toxic fumes or gases. No PVC nor neoprone components are used.

    TECHNICAL DATA
  • Diameter Range: 4" - 20"
  • Temperature Range: -30°C.+120°C
  • Fiberglass Density: 16 Kg/m3 & 24 Kg/m3.
  • Air Velocity: Max. 30 m/Sec.
  • Working Pressure: 300 mm W.G. (Max)
  • Standard Length: 10 Metres

    • For download the pdf here

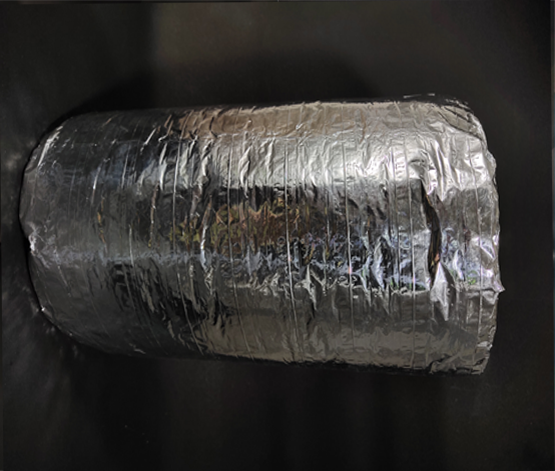

TYPE ACCOUSTIC A 10A 16 Kg & 24 Kg

Accoustical factory insulated duct with special sound absorbing inner liner. The air stream is completely separated from the Fiberglass insulation by the sealed liner and thus the posibility of fiberglass particie erosion is fully eliminated. The duct is completely encased with a tough, durable reinforced aluminium outer jacket.

    TECHNICAL DATA
  • Diameter Range: 4" - 20"
  • Temperature Range: -30°C.+120°C
  • Fiberglass Tickness: 25 mm.
  • Fiberglass Density: 16 Kg/m3 & 24 Kg/m3.
  • Air Velocity: Max. 30 m/Sec.
  • Working Pressure: 300 mm W.G. (Max)
  • Standard Length: 10 Metres

    • For download the pdf here

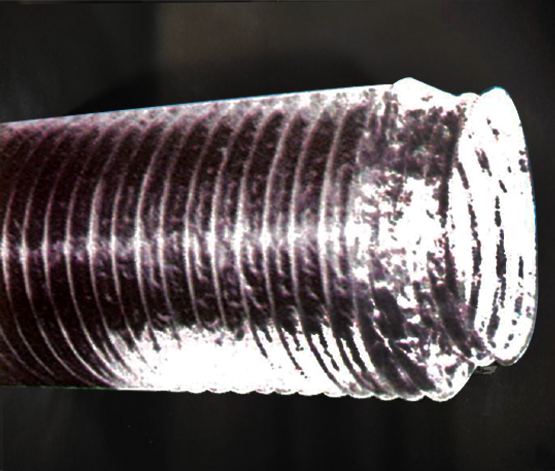

SILENCER TYPE SA

This type of silencer uses perforated aluminium foil which encapsulates the helical spring wire as the inner core, fiberglass insulation and helical spring wire supported aluminium foil for the outer duct which gives a good sound absorption.

    TECHNICAL DATA
  • Diameter Range: 4" - 20"
  • Temperature Range: -30°C.+120°C
  • Fiberglass Tickness: 25 mm.
  • Fiberglass Density: 16 Kg/m3 & 24 Kg/m3.
  • Air Velocity: Max. 30 m/Sec.
  • Working Pressure: 300 mm W.G. (Max)
  • Standard Length: 0,5 Metre & 1,0 Metre

    • For download the pdf here
