Modul Duct
- Thickness of Panel:20 mm
- Panel Dimensions: 4000 mm x 1200 mm x 20 mm
- Density of PIR Panel: 52 ± 2 Kg/m
- Aluminium Foil Thickness: 80 micron bothside
- Compressive Strength: 10> 200 N/mm
- Thermal Conductivity: 0.02 W/m.K
- R Value: 1.71
- Flame Retardant: Class B1.
- Friction Coefficient: 0.0135
- Weight: 1.48 kg/M²
- Working Temperature: -60 °C ± 80 °C
- Humidity: 0- 100%
- Pressure Max in Duct: 2000 Pa
- Air Flow Max in duct: 12 m/s.
- Green Product: Non CFC
Product Specification

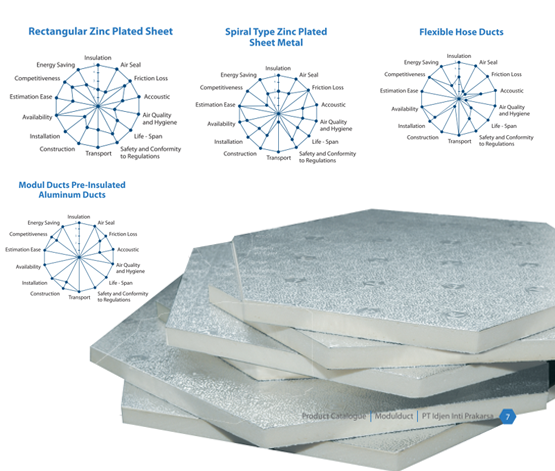

Modulduct - Pre-Insulated Aluminum Panel Ducts is a new invention in Duct System which is meet all the needs in fields working.

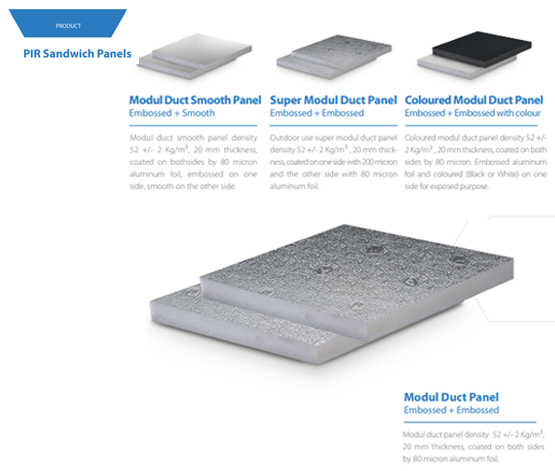

Consisting of High Density PIR (Poly Locyanurated Panel with aluminum facing on both sides - Modulduct Upper and Bottom layers are made of Embossed or Smooth Coating Aluminum Foil of 80 microns thickness or above, the whole system to meet the fire resistance standards of Industrial buildings.

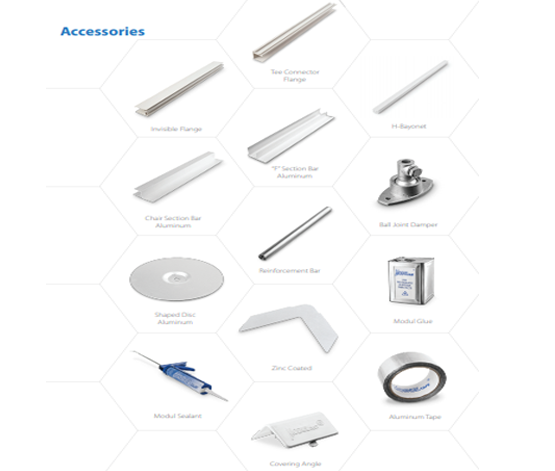

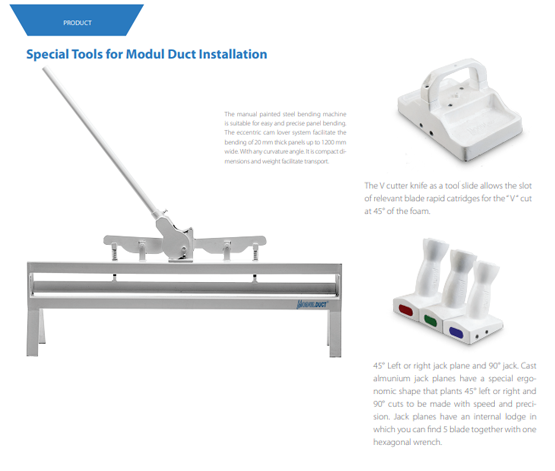

Modulduct - Pre-Insulated Aluminum Panel Ducts is equipped with the precised accessories and tools to made easy and support in cutting assembly, modify, construct and installed. The whole system will have long lasting insulation, high hygiene standards friendly environment extremely low noise levels, and maximum reduction of friction loss. Not only the material equipment, accessories, we also give the Technical Know How far consultant and contractors.
