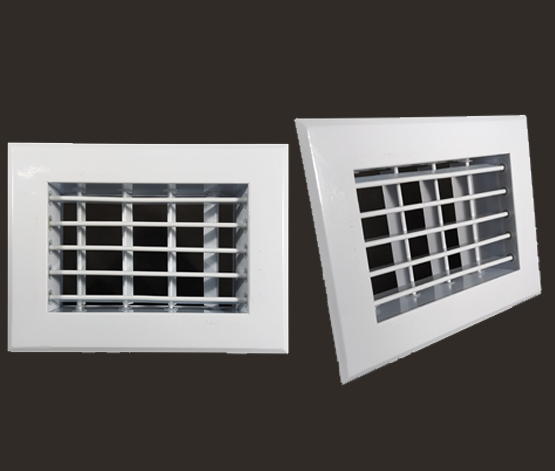

Supply Air Grille

Supply Air Grille

Application

Double deflection universal grilles used for intake in air conditioning system l, with adjustable front and rear blades installation can be into walls and ceiling. Throw range is defined by the horizontal distance perpendicular to the register face, at wich the air stream velocities have dropped to the terminal velocity.

Technical Information

These grilles have double deflection adjustable blades, Horizontal Supply Air Grille consists of Face Horizontal Blades and Rear Vertical Blades and for Vertical Blades and Rear Horizontal Blades.

Construction

Frame : High Quality extruded aluminium with Standard finish natural anodized.

Blades: Steel with hole diameter around 3-5 mm.

For download the pdf, here.
